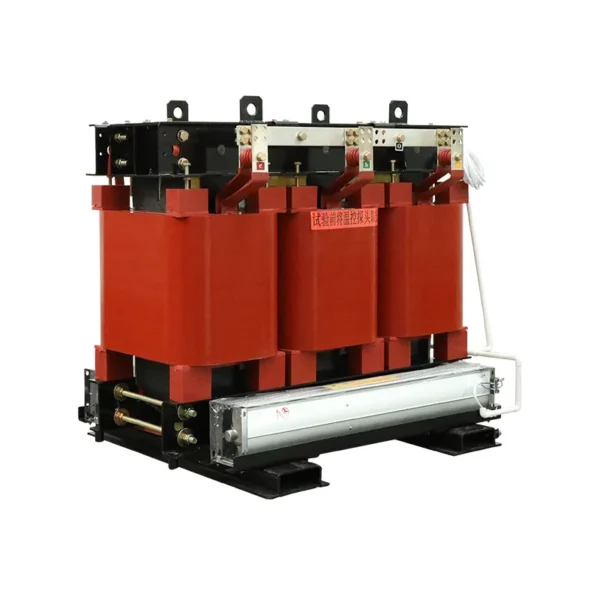

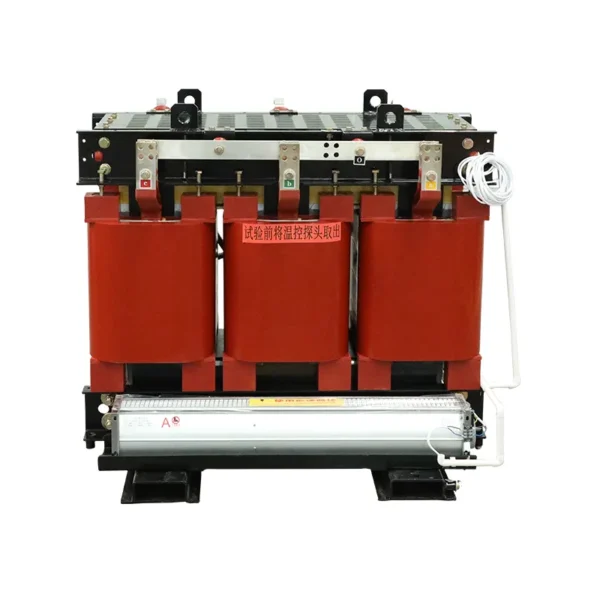

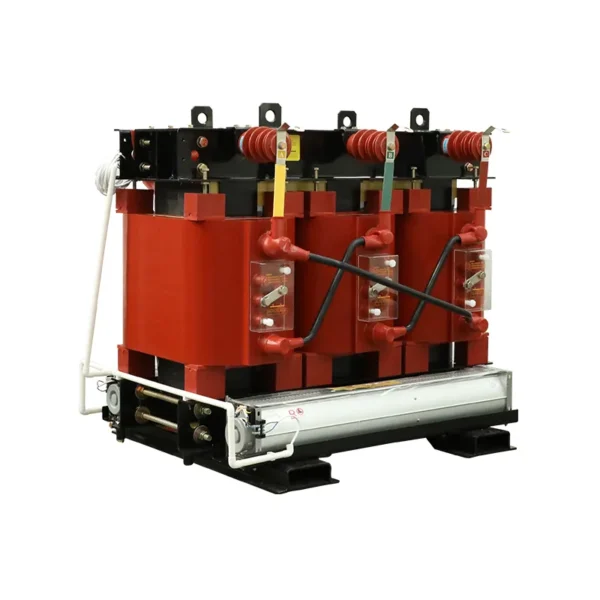

Overview of the SCBH Series 10kV Amorphous Alloy Dry-Type Transformer
The SCBH series amorphous alloy dry-type transformer is a high-efficiency 10kV distribution solution built around an amorphous metal core — a material that exhibits significantly lower hysteresis losses than conventional silicon steel. In SCBH15, SCBH17, and SCBH19 models, this core technology reduces no-load losses by up to 70% compared to traditional dry-type units, earning IE3/IE4 efficiency compliance and delivering substantial long-term energy savings.
Encapsulated in fire-resistant epoxy resin (Class F/H insulation), the transformer is inherently flame-retardant and explosion-proof, meeting IEC 60076-11 for safety. Natural air cooling (AN) is supplemented by an optional forced-air fan system controlled by PT100 sensors, while an RS485 interface enables remote temperature monitoring and alarm integration. This amorphous core transformer is purpose-built for harsh environments — humid, dusty, or coastal — and delivers reliable, low-maintenance operation with noise levels below 65dB.
- Rated 10kV primary, 0.4kV secondary, with ±2×2.5% or ±5% tapping range.
- Power ratings from 30kVA to 2500kVA, short-circuit resistance ≤25kA/2s.
- Insulation class F/H, temperature rise ≤100K/125K.

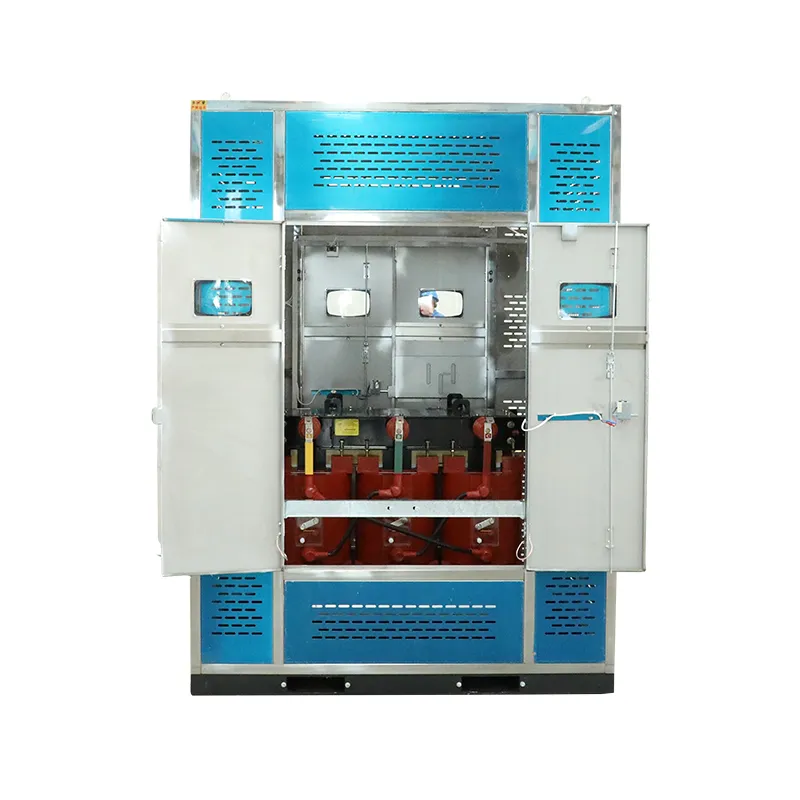

- Standard IP20/IP23 enclosure, IP54 optional for extreme conditions.
Benefits and Key Advantages of SCBH Amorphous Alloy Transformers
Ultra-Low No-Load Loss
Amorphous alloy core reduces no-load loss by up to 70% vs silicon steel, cutting standby energy costs year after year.
Enhanced Fire Safety
Epoxy resin insulation is self-extinguishing and flame-retardant — ideal for indoor, underground, and populated areas.
Low Maintenance
Oil-free construction eliminates leak risks and dielectric testing; only visual checks and fan filter cleaning needed.
Environmental Adaptability
Sealed resin resists moisture, chemical fumes, and dust; optional IP54 for coastal or heavily polluted sites.
Quiet Operation
Amorphous core and low magnetostriction keep noise ≤65dB, suitable for hospitals, schools, and residential zones.
Smart Thermal Management
PT100 sensors with over-temperature alarm and trip; RS485 for remote integration with BMS or SCADA.
Uses & Industries
Urban & Rural Grids
Low-loss distribution transformers for utility networks targeting carbon reduction and energy efficiency mandates.
Commercial & Institutional
Malls, hospitals, and universities benefit from fire-safe, quiet, and compact transformer installations.
Industrial & Manufacturing
Continuous-duty plants and process industries rely on the robust design and high overload tolerance.
Renewable Energy Integration
Solar and wind farm collection points use the ultra-low losses to maximize net energy export.
Technical Data & Specifications
Standard SCBH series 10kV amorphous alloy dry-type transformer parameters. SCBH15, SCBH17, and SCBH19 models correspond to increasingly lower loss levels. For detailed loss charts and dimension drawings, request our amorphous alloy transformer catalog.
| Parameter | Specification |
|---|---|
| Rated Voltage | 6kV / 10kV (primary), 0.4kV (secondary) |
| Power Rating | 100kVA – 2500kVA |
| Frequency | 50Hz / 60Hz |
| Efficiency | ≥99% at rated load |
| Insulation Class | F / H (temperature rise ≤100K / 125K) |
| Cooling Method | AN (Natural Air) or AF (Forced Air) |
| Noise Level | ≤65dB (under full load) |
| Protection Level | IP20 / IP23 / IP54 (customizable) |
| Impulse Withstand Voltage | 40kV–75kV (depending on voltage class) |
| Short-Circuit Resistance | ≤25kA for 2 seconds |
Capacity and Loss Data (SCBH Series)
| Rated Capacity (kVA) | High Voltage (kV) | Tap Range | Low Voltage (kV) | Connection | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 30 | 11; 10.5; 10; 6.6; 6.3; 6 | ±5% ±2×2.5% |
0.4 | Yyn0 Dyn11 | 190 | 710 | 2.1 | 4 |
| 50 | Yyn0 Dyn11 | 270 | 1000 | 2.1 | 4 | |||
| 80 | Yyn0 Dyn11 | 370 | 1380 | 1.6 | 4 | |||
| 100 | Yyn0 Dyn11 | 400 | 1570 | 1.6 | 4 | |||
| 125 | Yyn0 Dyn11 | 470 | 1850 | 1.5 | 4 | |||
| 160 | Yyn0 Dyn11 | 540 | 2130 | 1.5 | 4 | |||
| 200 | Yyn0 Dyn11 | 620 | 2530 | 1.3 | 4 | |||
| 250 | Yyn0 Dyn11 | 720 | 2760 | 1.3 | 4 | |||
| 315 | Yyn0 Dyn11 | 880 | 3470 | 1.1 | 4 | |||
| 400 | Yyn0 Dyn11 | 980 | 3990 | 1.1 | 4 | |||
| 500 | Yyn0 Dyn11 | 1160 | 4880 | 1.1 | 4 | |||
| 630 | Yyn0 Dyn11 | 1340 | 5880 | 0.9 | 4 | |||
| 630 | Yyn0 Dyn11 | 1300 | 5960 | 0.9 | 6 | |||
| 800 | Yyn0 Dyn11 | 1520 | 5960 | 0.9 | 6 | |||
| 1000 | Yyn0 Dyn11 | 1770 | 8130 | 0.9 | 6 | |||
| 1250 | Yyn0 Dyn11 | 2090 | 9690 | 0.9 | 6 | |||
| 1600 | Yyn0 Dyn11 | 2450 | 11730 | 0.9 | 6 | |||
| 2000 | Yyn0 Dyn11 | 3050 | 14450 | 0.9 | 6 | |||
| 2500 | Yyn0 Dyn11 | 3600 | 17170 | 0.7 | 6 |
Contact us for SCBH15/17/19 amorphous alloy transformer test certificates, IE4 compliance documents, and detailed dimension drawings.
Why Buy Our SCBH Amorphous Alloy Transformers
Amorphous Core Expertise
As a dedicated amorphous alloy transformer manufacturer, we build SCBH series units with precision-wound epoxy resin coils and imported amorphous ribbon.
Certified Ultra-Efficiency
SCBH17 and SCBH19 deliver verified no-load loss reductions, complying with or exceeding IE3/IE4 efficiency benchmarks.
Competitive Pricing
Direct factory supply of amorphous alloy dry-type transformers for utility, industrial, and green-building projects.
Fast Lead Times
Standard SCBH models ship in 5–7 weeks; customized tap changers, enclosures, and monitoring available on flexible schedules.
Certifications & Standards
How This Amorphous Alloy Dry-Type Transformer Fits Your Energy-Saving Goals
Guidance for energy managers, electrical consultants, and EPCs selecting high-efficiency 10kV transformers for green projects.
Project Applications
For Green Building Projects, SCBH19 transformers achieve IE4 efficiency, directly reducing a building’s energy intensity and supporting LEED/BREEAM certifications. In Utility Distribution Networks, the ultra-low no-load losses translate into massive savings across hundreds of installed units. Solar and Wind Farms use these transformers to minimize transformation losses and maximize kWh sold to the grid.
SCBH15 vs SCBH17 vs SCBH19 Selection
SCBH15 offers a strong entry-level reduction in no-load losses. SCBH17 provides an intermediate step with around 20% lower no-load loss than SCBH15. SCBH19 represents the highest efficiency tier, cutting no-load losses by up to 70% compared to conventional transformers — payback is achieved quickly in continuous-duty applications.
Installation & Monitoring
Install indoors or in weather-protected enclosures. The transformer arrives fully assembled. Connect PT100 and RS485 to your building management system for real-time temperature data, automatic fan control, and predictive maintenance alerts. No oil handling or containment needed.
Frequently Asked Questions
What is the purpose of a dry type transformer?
A dry type transformer provides voltage transformation without flammable insulating liquids. Its solid epoxy resin insulation eliminates fire risk and oil leaks, making it the preferred choice for indoor, commercial, and safety-sensitive installations.
How many amps is a 10 kVA transformer?
For a three-phase 400V system, a 10 kVA transformer delivers about 14.4A. Our SCBH series starts at 30kVA up to 2500kVA, covering a wide range of medium-voltage distribution needs at far higher amperages.
What is the maximum voltage for a dry type transformer?
Dry-type transformers are commonly manufactured up to 36kV or higher; our SCBH series is rated for 10kV primary with insulation impulse withstand up to 75kV, and we can customize for 20-35kV as required.
What is a 10 mVA transformer?
A 10 MVA (10,000 kVA) transformer has the capacity to deliver 10 megavolt-amperes of apparent power. It is typically used in primary substations or large industrial plants. Our SCBH range extends to 2500kVA for medium-voltage distribution; contact us for higher-capacity custom designs.
