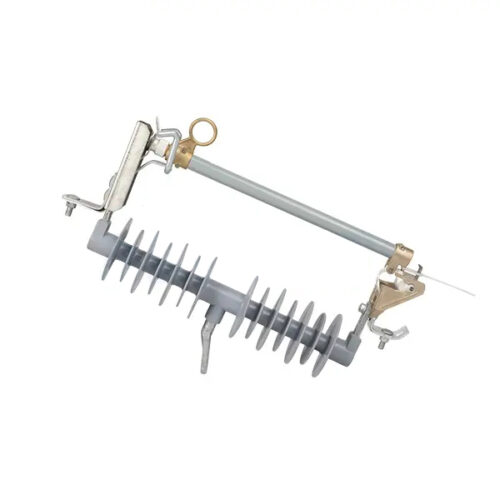

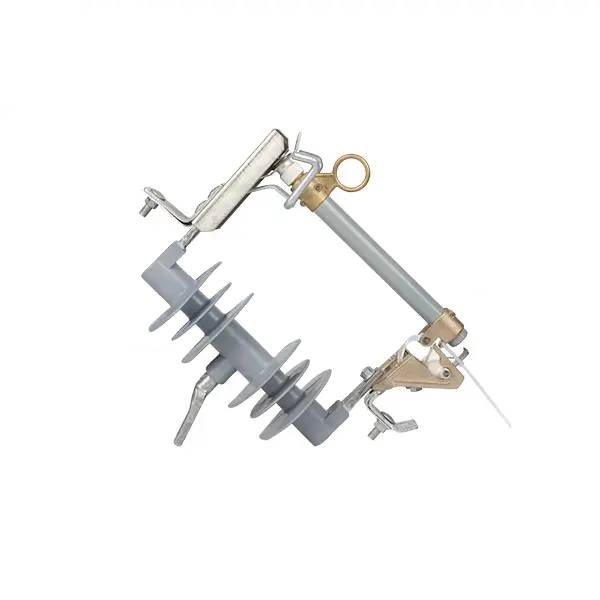

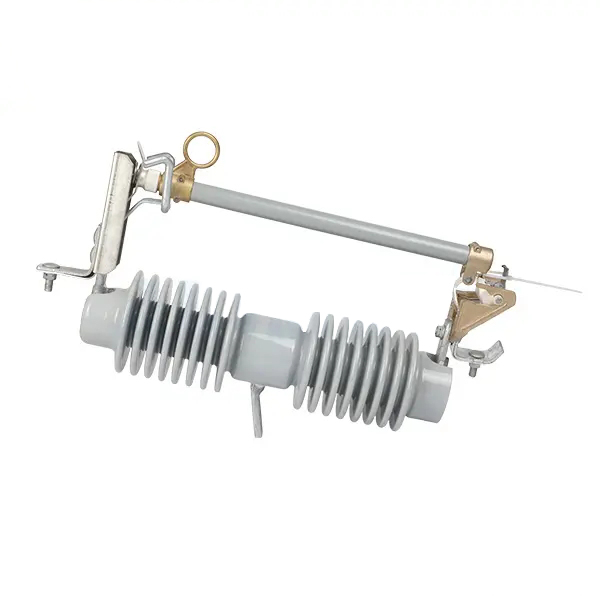

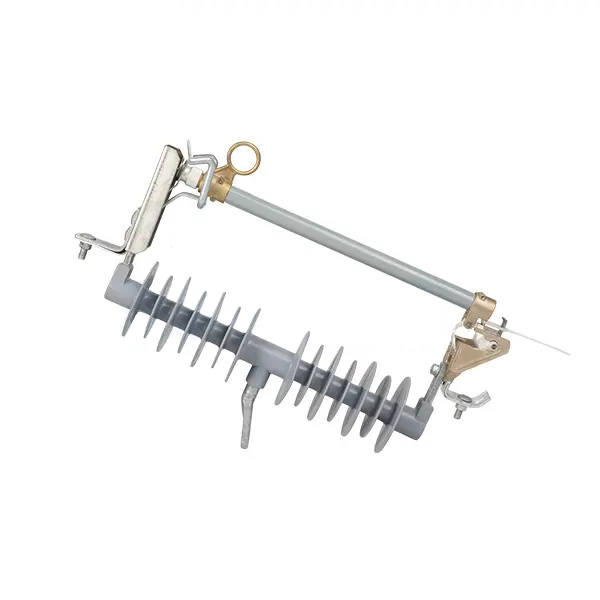

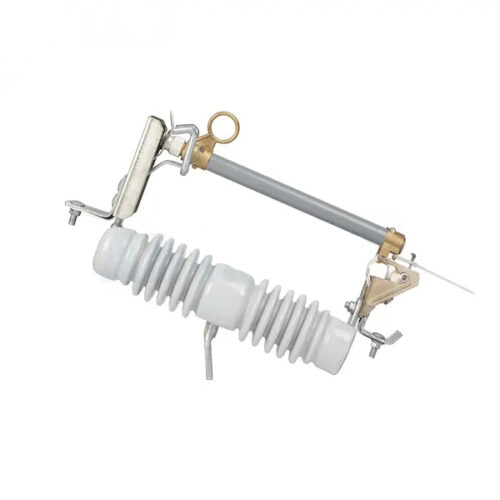

SGFCO121 Drop-Out Fuse Cutout: Reliable Power System Protection

The SGFCO121 Drop-Out Fuse Cutout serves as a crucial protection device in power distribution systems, designed to safeguard distribution lines and transformers against overloads and short circuits. By interrupting fault currents through its fuse mechanism, it prevents equipment damage and minimizes system failures. Known for high reliability, straightforward operation, and easy maintenance, it is widely employed across distribution networks.

Category:

Product Overview

The SGFCO121 Drop-Out Fuse Cutout is a key protective device used in electrical distribution systems to ensure operational safety and reliability. It automatically disconnects circuits during overload or short-circuit conditions, isolating faults to protect transformers and distribution lines from damage. Engineered for durability and consistent performance, it plays a vital role in maintaining grid stability and preventing extended power outages.

Product Features

◆Precision-engineered fuse mechanism for reliable fault interruption.

◆Robust construction designed to withstand electrical and environmental stress.

◆User-friendly, intuitive design for straightforward installation and operation.

◆Easy-to-reset or replace drop-out fuse assembly.

◆Clear visual indication of operation status.

Product Advantages

◇High Reliability: Consistently performs under demanding conditions, reducing unexpected failures.

◇Quick Fault Isolation: Helps minimize downtime and limits damage to connected equipment.

◇Low Maintenance: Simple design ensures easy inspection, replacement, and servicing.

◇Cost-Effective: Extends equipment lifespan and lowers overall system maintenance costs.

◇Wide Compatibility: Suitable for integration in various distribution network configurations.

Usage Scenarios

Ideal for overhead distribution lines, pole-mounted transformers, and substation applications in utility, industrial, and commercial power networks. Commonly used in rural and urban distribution systems for overload and short-circuit protection, especially where reliable, economical, and easy-to-maintain fault protection is required.

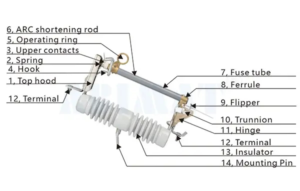

SGFCO121 Drop-Out Fuse Cutout: Reliable Power System Protection

Technical parameters

Model number Rated voltage Rated current Breaking current Impulse voltage Power frequency withstand voltage Creep distance
SGFCO121-12/100 12kV 100A 6.3kA 110kV 42kV 220mm
SGFCO121-12/200 12kV 200A 8.0kA 110kV 42kV 220mm
SGFCO121-15/100 15kV 100A 6.3kA 125kV 45kV 320mm
SGFCO121-15/200 15kV 200A 8.0kA 125kV 45kV 320mm
SGFCO121-24/100 24kV 100A 6.3kA 150kV 65kV 440mm
SGFCO121-24/200 24kV 200A 8.0kA 150kV 65kV 440mm
SGFCO121-33/100 33kV 100A 6.3kA 170kV 70kV 660mm
SGFCO121-33/200 33kV 200A 8.0kA 170kV 70kV 660mm
SGFCO121-36/100 36kV 100A 6.3kA 170kV 70kV 720mm
SGFCO121-36/200 36kV 200A 8.0kA 170kV 70kV 720mm
SGHFCO121-12/100 12kV 100A 6.3kA 110kV 42kV 380mm
SGHFCO121-12/200 12kV 200A 8.0kA 110kV 42kV 380mm
SGHFCO121-24/100 24kV 100A 6.3kA 150kV 65kV 540mm
SGHFCO121-24/200 24kV 200A 8.0kA 150kV 65kV 540mm
SGHFCO121-33/100 33kV 100A 6.3kA 170kV 70kV 720mm
SGHFCO121-33/200 33kV 200A 8.0kA 170kV 70kV 720mm
