In the event you are looking to buy a pad mount transformer, you are most probably weighing different suppliers for either a residential build, commercial project, or industrial substation while wanting reasonable specifications, fair prices, and good lead times. A pad mount transformer is a ground-mounted, locked, and vandal-proof device designed to reduce medium voltage to usable levels in buildings or sites supplied with underground cabling. With supply chains stressed and efficiency regulations tightening, it becomes crucial to ensure that the specifications, certifications, and delivery times are right before you go ahead with your purchase. This guide will give you a practical specification checklist, the common drivers of price formation, and a method to compare manufacturers so that you can be ready to buy after browsing.
When it comes to buying a pad-mounted transformer, it is all about the specification, price, and supplier. Find out the specifications such as kVA rating, primary and secondary voltage with taps, single-phase and three-phase, dead front and live front, cooling oil (mineral oil or FR3 natural ester), and radial and loop feed according to relevant standards such as IEEE C57.12.34 and DOE 2016 efficiency. The pricing is usually based on the kVA rating, winding material, type of oil used in the transformer, custom fittings, number of pieces ordered, and manufacturing time. If ordering in bulk or for custom orders, factory-direct suppliers are usually less expensive than local stocking suppliers. ShineGrand provides three-phase pad mounted transformers with voltage of 35 kV and power rating of 6300 kVA directly from the factory with the lead time of 3 to 5 weeks.
What Is a Pad-Mounted Transformer, and Why Choose One?
A pad-mounted transformer is located on the surface of the ground, on a concrete base and within a locked enclosure made of steel, and connects to the underground circuit. Thus, those types of transformers are most commonly used in all places where utilities are buried underground: modern housing subdivisions and industries; commercial sectors and areas of universities; etc. The pad-mounted transformer offers a much more reasonable alternative to a pole-mounted transformer (the one situated on a power pole and connected to overhead power lines) due to the fact that it is much more secure and safer in operation at ground level, resistant to vandalism, and unobtrusive visually, allowing service personnel to approach and service it easily. While the pole-mounted transformer is better to use in rural areas, the pad-mounted transformer should be the preferable option in all areas where underground installations and aesthetics are essential. This is why most buyers looking for a pad mount transformer for sale are equipping underground-fed projects.

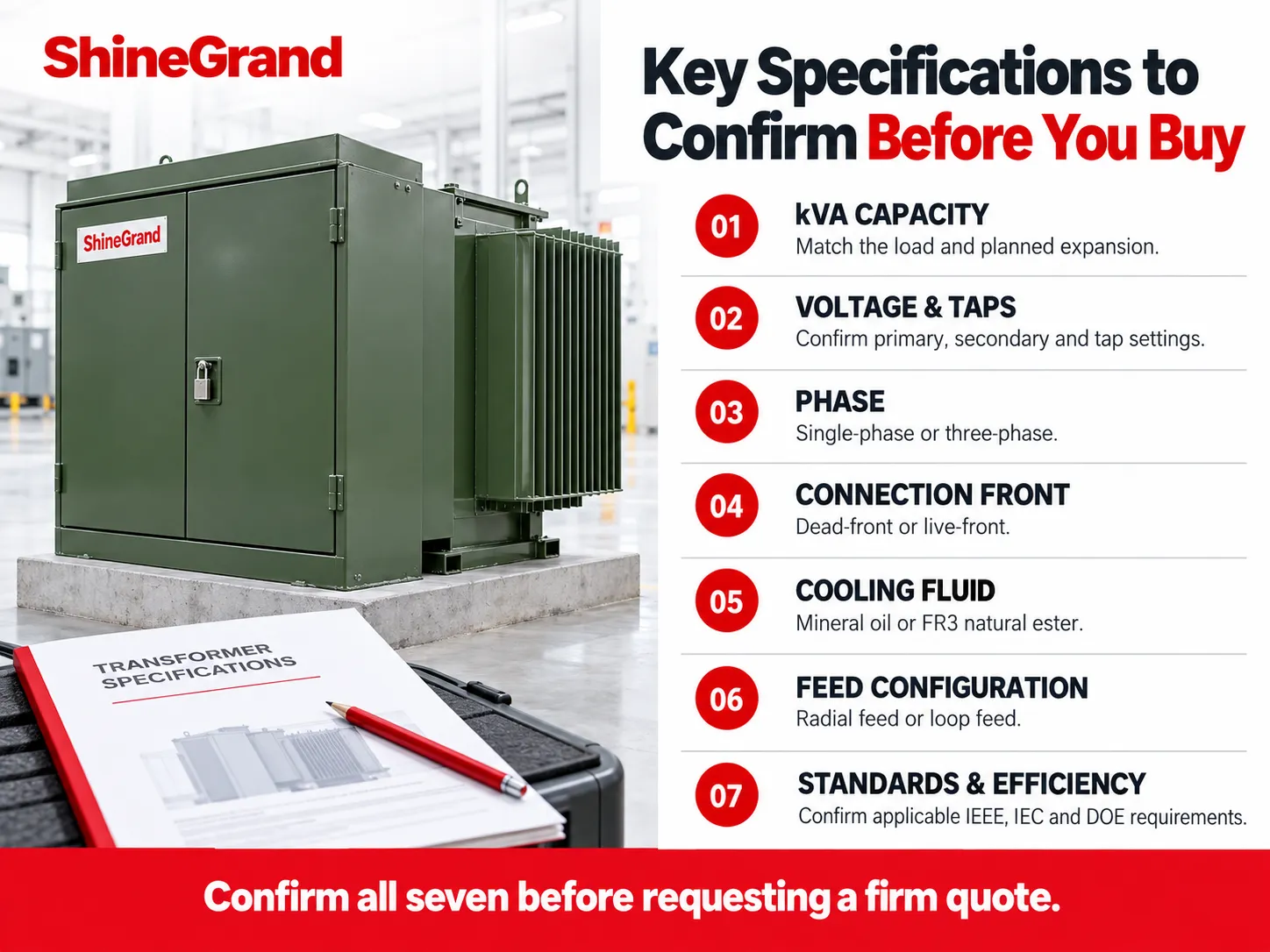

Key Specifications to Confirm Before You Buy
This section is crucial in deciding if the transformer you are purchasing will suit your project needs. Keep in mind the following factors before requesting for the quote.
* Power rating. While most manufacturers have ratings between 75 kVA and 2500 kVA, ShineGrand constructs three-phase pad-mounted transformers with a capacity rating of up to 6300 kVA.
1* Input and output voltages. These transformers are designed for various input voltage and low-voltage output.
2* Single-phase or three-phase transformers. Single-phase transformers are best for residential environments, while three-phase transformers are designed for larger and more industrial projects.
3* Technologies used. Closed transformers have their components covered to prevent exposure and ensure safety.
4* Cooling medium. Mineral oil is the typical choice of cooling medium; however, newer varieties such as FR3 natural ester have better fire resistance and are environmentally friendly.
5* Feeding configuration. Radial feed refers to transformers receiving energy from one side only, while loop feed allows to connect transformers from two sides.
* International standards requirements. Ensure compliance with IEEE C57.12.34 standard for pad-mounted transformers and DOE 2010 efficiency requirements.
ShineGrand manufactures pad-mounted transformers which comply with every requirement above and can be adjusted to meet the requirements you have.
What Drives the Price of a Pad-Mounted Transformer
Instead of relying on a rapidly dating price quote, it is more useful to know what really impacts the pricing of pad mount transformers for sale so that any price quote obtained could be interpreted correctly. The key factor is kVA rating: a higher rating goes along with higher costs, as more steel, copper or aluminum is used, and the price increases faster than the kVA rating. The type of winding also matters, as copper costs more than aluminum but, on the one hand, has advantages regarding size and efficiency. The type of cooling liquid used also influences the cost, as FR3 natural ester is more expensive than mineral oil. Custom spare parts, bushes, and other equipment, feed configuration, special tests, and so on contribute to the total amount as well. Finally, the volume of transformers ordered and time of delivery influence the amount as well: both volume orders and quick delivery mean lower prices per unit.

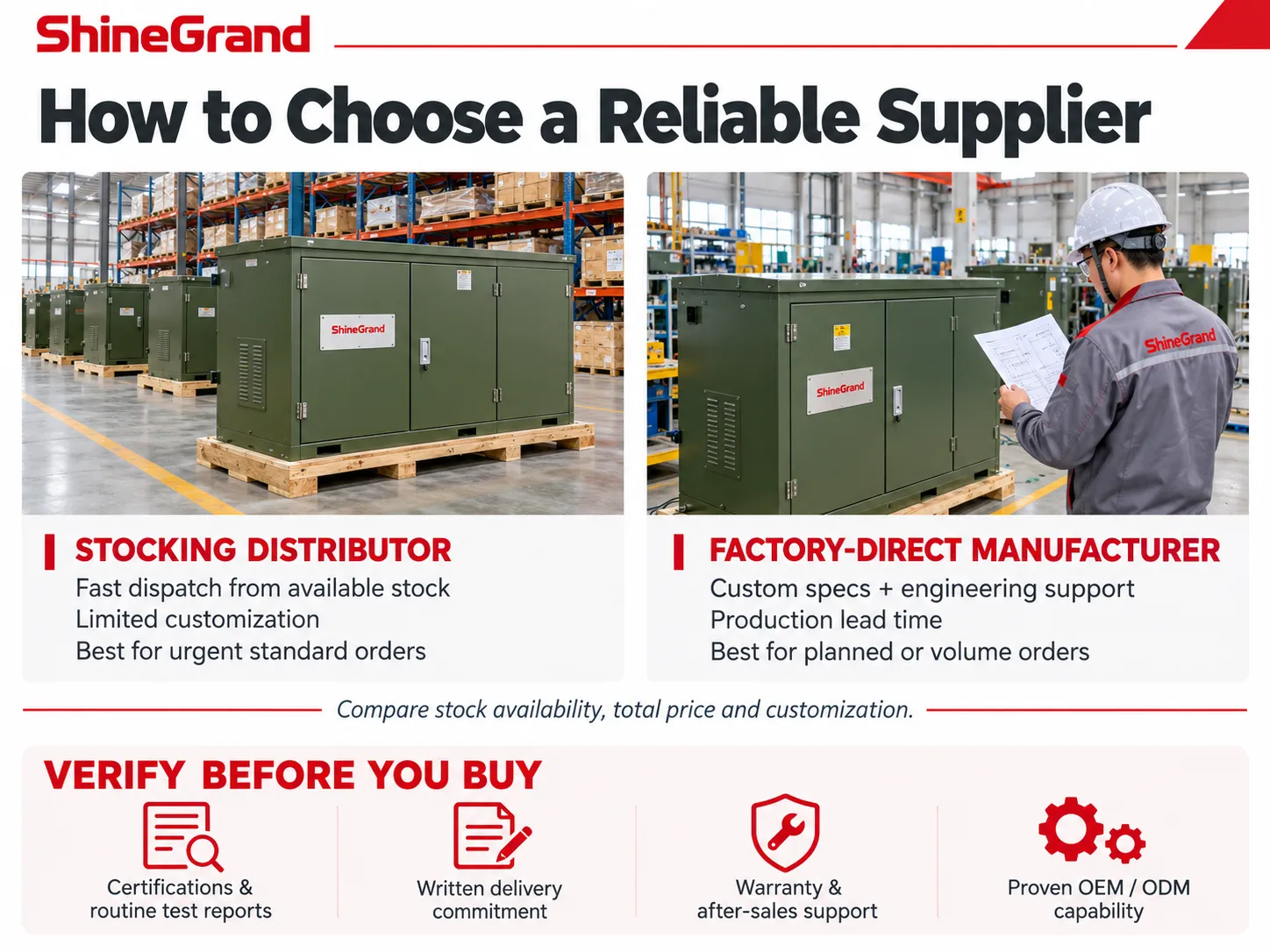

How to Choose a Reliable Supplier
The choice of the supplier is equally important as the specification of the products, and it is actually at this stage that the value of the purchase is created or lost. The first thing to decide is whether to buy from a stocking distributor or from a factory-direct manufacturer. A stocking distributor is able to send a usual item from stock, which solves the urgent need but comes with a price mark-up and limited options for customization. A factory-direct distributor offers good prices, maximum customization, and direct engineering help, but has a specified production lead time, thus working well for planned works, specific requirements, and large orders.
Here is a comparative overview of pad mount transformers available from these types of suppliers.
- Stocking distributor: fastest for standard units shipped from inventory; higher price due to added margin; limited or no customization; best for urgent, off-the-shelf needs.
- Factory-direct manufacturer: better pricing with no distributor margin; full customization of voltage, kVA, cooling, and fittings; direct engineering support; a defined production lead time; best for planned projects, custom specs, and volume orders.
Whichever route is taken, check the supplier out on important items protecting your project: valid certifications and test reports for the units being purchased, clear lead-time commitments, after-sales support and warranty terms, as well as OEM capability for custom units. Request to see the relevant test documentation and check all relevant standards.
ShineGrand Electric manufactures pad-mounted transformers at factory prices, guaranteeing that customers receive their orders in about 3-5 weeks and are given full support in regards to units designed for different voltage, power, cooling, and connection requirements from anywhere in the world. You can review the specifications on the Three Phase Pad Mounted Transformer Series page, and explore related distribution equipment such as the 6-10KV Oil-Immersed Distribution Transformer and the full transformer product range.
The North American Pad-Mounted Transformer Market
For buyers comparing options, it helps to know the landscape. Several established North American suppliers list pad mount transformers for sale, often emphasizing in-stock inventory and quick shipping, including Maddox, Pacific Transformer, and Daelim, alongside others such as CORE Transformers and Miami Transformers. Selling to distributors specializing in stock is the best option when you wish to receive a standard unit quickly from the stock on hand. However, for customized models, larger capacities, and bulk orders, the prices offered by factory-direct manufacturers generally cannot be competed with, as they sell directly from the factory. Ultimately, the choice depends on whether the speed of delivery or engineering and cost guidelines matter more in the given case.
What to Check on Delivery
Receiving the equipment represents only a portion of the purchase; performing a quick acceptance check on the equipment helps to protect you before you install it. After the equipment has arrived, check that the nameplate matches your order, as well as the kVA rating, as well as the voltage (primary and secondary), phase, cooling medium, and connections. Look at the enclosure for transport damage; verify oil levels and leaks on filled units, and check that bushings, tap changers, and fittings are okay. Make sure you have received the necessary testing report and that your equipment meets your specifications. It’s better to spot an issue before you energize the unit, since a reputable supplier knows how to provide the required documentation so this process can be simple.
Common Applications
Whenever underground distribution and load come together pad-mounted transformers are required. In homes such distribution transformers are usually located outside the property where they supply power for households. This type of transformers is also found in commercial building complexes nearby apartments. For example, in large factory installations 3-phase pad-mounted transformers are typical in meeting the needs of production facilities. Such transformers are helpful in connecting renewable energy systems, such as solar installations with the grid. Although specifications will be different reliability will remain the same with the adequate voltage and kVA power.
How to Request an Efficient Quote, Plus FAQ
The quickest route to obtaining a precise quote for a pad mount transformer for sale would be to provide the vendor the required information: the kVA rating, primary and secondary voltage, single or three-phase, quantity, the type of cooling required, whether a dead-front or live-front transformer is needed, type of feeder used, requisites with regard to safety standards as well as the delivery date.
How much does a pad-mounted transformer cost?
Price is largely determined by the kVA rating, voltage class, winding material, type of cooling fluid used, custom fittings, and the total number of items required. The quote given based on specifications will provide an accurate figure. In price comparison, factory direct cost is normally better than local distributors especially for large orders or custom orders. To determine the exact cost, please provide your specifications instead of relying on outdated generic estimates.
What is the lead time for a pad-mounted transformer?
Different suppliers have different delivery schedules depending on how their units are manufactured. Distributors of readily manufactured units process significant orders rapidly, while companies that manufacture directly to clients depend on a manufacturing schedule of their own. According to ShineGrand, their delivery times are almost 3–5 weeks, which is competitive among manufacturers whose units are assembled directly according to the order. If you need long-lead or customized orders, make sure to ask and confirm the date in writing at the quotation stage.
Can pad-mounted transformers be customized?
Yes. A factory-direct manufacturer can adjust the voltage, kVA rating, cooling fluid, type of bushings, feed type, and fittings needed for your application. This is an advantage over purchasing a standardized item and in fact where OEM/ODM benefits come into play. Shinegrand also gives you the option to customize its entire range of pad-mounted units.
What is the difference between single-phase and three-phase pad-mounted transformers?
While the single-phase systems are for residential and lower usage, the three-phase systems consider the commercial usage, industrial, and any larger setups demanding the balanced three-phase current supply. The type of power supply choice is specified based on the load and the type of services being used, so this must be affirmed in the beginning point since the load type is important for the overall specification.
What is the difference between dead-front and live-front?
Dead-front models do not have any visible live components at the point of connection to cables and are therefore safer for use in most cases, while live-front models expose the connectors and are limited to certain utility applications. In the majority of cases, consumers prefer the dead-front type unless it is specified otherwise by the utility requirements.
Do pad-mounted transformers meet DOE efficiency standards?
Reputable manufacturers build the equipment according to relevant efficiency standards, such as the DOE 2016 for the North American market, IEEE C57.12.34 construction standards, and the IEC standard for any international projects. Always check what specific standards the equipment has been built and tested according to and ask for test documentation as well.
References
- IEEE C57.12.34 — Three-Phase Pad-Mounted Distribution Transformers. The construction standard for three-phase pad-mounted units.
- U.S. Department of Energy — Distribution Transformer Efficiency Standards. The DOE efficiency requirements referenced in North American procurement.
- IEC 60076 — Power Transformers. International performance and testing standards for transformers.
- NEMA — Pad-Mounted Equipment Enclosure and Distribution Standards. Reference for enclosure integrity and distribution equipment.
- Electrical Engineering Portal. Neutral educational resource on distribution transformers and specification.
Get a Factory-Direct Quote From ShineGrand Electric
Choosing the right specification and the right supplier is what saves a project both money and time. Ready to get a pad mount transformer for sale that matches your exact requirements? Contact ShineGrand for a competitive factory-direct quote, a detailed datasheet, and a confirmed lead time. Our three-phase pad-mounted transformers are available up to 35 kV and 6300 kVA, built to IEEE, IEC, and DOE standards and customizable to your project. Review the Three Phase Pad Mounted Transformer Series, browse the full transformer product range, or contact the ShineGrand team to request your quote today.
